Stainless Steel Decorative Wall Covering Sheets

HAVE YOUR OWN DRAWING?

If you have a drawing that you would like us to see, then upload it here.

Select "Yes" then click the "Browse" button to find your drawing on your computer.

Once you've browsed for your drawing, click the "Submit" button to upload it to our servers.

Make sure the file is no larger than 1MB and should be one of these file formats: .jpg, .gif, .pdf.

SELECT YOUR STYLE

There are two countertop styles which you can select from: Straight or L-Shape.

SELECT YOUR SIZE

You can select either a "Stock Size" countertop (select from a list of available sizes)

OR

You can select a "Custom Size" countertop where you can enter your own measurements.

ENTER YOUR DIMENSIONS

For the L-Shape countertop, you will need to enter four measurements: 1) Depth A, 2) Length B, 3) Length C, 4) Depth D

Please use the the L-Shape countertop illustration in Step 1 above to reference the corresponding sides.

EDGE PROFILE

You can select an edge profile without a "return" or one with a "return".
(The return is where the metal bends under the edge of the countertop.)

The standard edge is 1.5" (height). The standard return is .5".

THINNER EDGE

By checking this box, the edge height will be 3/4".
The standard edge height is 1.5".

EXTRA THICK EDGE

You can choose to have the edge height taller than the standard 1.5".

SIDE OPTIONS

You can select which side(s) you would like the edge profile to cover: Left and/or Right.

(The front of the countertop is covered by default)

SIDE OPTIONS

You can select which side(s) you would like the edge profile to cover.

Use the illustration in Step 1 above to select your corresponding sides.
(The front of the countertop is covered by default)

FINISH

The standard finish is Matte Non-Directional.

The Brushed Directional Finish is an upgrade. The finish is the same as the stainless steel appliances in kitchens.

WOOD BACKER

Select whether or not you would like a wood backer (made of 1 1/2" MDF buildup) for your countertop.

BACKSPLASH

Select if you would like a backsplash for your countertop.
If you choose "yes", enter the height in inches and which sides you want the backsplash.

SINK

If you need a sink, select "Yes", then select your sink.

CUTOUT

If you need a cutout, select "Yes", then enter the measurements necessary.

CUTOUT - WHICH SIDE?

Because you selected an L-Shape countertop, we need to know which side you want your cutout.

With the countertop oriented as it is in the illustration to the right, select which side you'd like your cutout.
Then view the summary illustration to see your cutout.

CUTOUT

If you need a second cutout, select "Yes", then enter the measurements necessary.

CUTOUT - WHICH SIDE?

Because you selected an L-Shape countertop, we need to know which side you want your sink cutout.

With the countertop oriented as it is in the illustration to the right, select which side you'd like your cutout.
Then view the summary illustration to see your cutout.

SAVE YOUR COUNTERTOP

Not ready to order yet?

By clicking the "Save Your Countertop" button your countertop design will be saved so you can retrieve it at any time to order or edit and update.

JOB NAME

Create a Job Name to save one or multiple countertop designs.

COUNTERTOP NAME

Create a Name for this countertop.

If you also entered a Job Name, this countertop will be associated with the Job Name you entered.

STAINLESS STEEL SINKS

HAVE YOUR OWN DRAWING?

If you have a drawing that you would like us to see, then upload it here.

Select "Yes" then click the "Browse" button to find your drawing on your computer.

Once you've browsed for your drawing, click the "Submit" button to upload it to our servers.

Make sure the file is no larger than 5MB and should be one of these file formats: .jpg, .gif, .png, .pdf, .dwg, .dwf, .dxf, .sldrw, .igs, .step, .stp, skp, .dae.

SELECT YOUR FINISH

You can choose either a Brushed (#4 Polish) finish or a Mirrored (#8 Non-directional) finish.

The #8 finish has absolutely no grain and looks just like a mirror.

SELECT YOUR PATTERN

There are five options to choose for your backsplash pattern:

  • No Pattern - This is either the Brushed #4 Polished or the Mirrored #8 Non-directional natural look
    (based on your selection is Step 1)
  • Quilted - One of our most popular choices
  • Subway Tile - Looking for a pattern that mimmics subway tile? Then this is your best option
  • 3D Diamond - This pattern appears to be diamonds set in three dimensional
  • Wave - Want something unique? Try our wave pattern

SELECT YOUR METAL/FINISH

You can choose either a Brushed (#4 Polish) finish or a Mirrored (#8 Non-directional) finish.

The #4 finish is most commonly seen on kitchen appliances.
The #8 finish has absolutely no grain and looks just like a mirror.

Choose any of the following:

  • 304 #4 (Brushed) - will NOT hold a magnet
  • 304 #8 (Mirror) - will NOT hold a magnet
  • 316L #4 (Brushed) - will NOT hold a magnet
  • 316L #8 (Mirror) - will NOT hold a magnet
  • 430 #4 (Brushed) - will hold a magnet
  • 430 #8 (Mirror) - will hold a magnet

Note: Random Swirl Finish comes in 304 and 316L

SELECT YOUR EMBOSSED TYPE

You can choose either the Fine Line or Beveled embossed type.

SELECT YOUR SIZE

You can select either a "Stock Size" backsplash (select from a list of available sizes)

OR

You can select "Custom Size" backsplash where you can enter your own measurements.

SELECT YOUR METAL

Select from multiple metal choices:

  • Brushed Finish Non-Magnetic (304) - will NOT hold a magnet
  • Brushed Finish Magnetic (304) - will hold a magnet
  • Mirror Finish Non-Magnetic (304) - will NOT hold a magnet

SELECT METAL THICKNESS

Stainless:
Light Duty is 24 gauge (.0235")
Medium Duty is 22 gauge (.0293")
Heavy Duty is 20 gauge (.0355")

SELECT YOUR PATTERN

Select any of the patterns below.

SELECT YOUR SIZE

Stock Size:
Select one of our pre-cut sizes.
These measurements account for the hemmed edges.

Custom Size:
Enter your own height and length.
The measurement accounts for the hemmed edges.

SELECT YOUR SIZE

Stock Size:

Select one of our pre-cut sizes.
If you choose to add the hemming option, these measurements account for the hemmed edges.

Custom Size:

Enter your own height and length.
If you choose to add the hemming option, the measurement you enter will account for the hemmed edges.

PATTERN PREFERENCE

(see illustration on left of page)

Run the Height - Selecting this will have the pattern run vertically along the height.

Run the Length - Selecting this will have the pattern run horizontally along the length.

GRAIN PREFERENCE

No Preference - Selecting this will have the grain run either vertically or horizontally.

Yes - Selecting this will have the grain run horizontally along the length. An additiona 10% charge will be added for that particular piece.

Note: If the length of the item is over 47", the direction of the grain will run length of the cut.

CUSTOMIZE SIZE

This is where you can upload a file.

SELECT EDGE/BACKING OPTION

Backer Information:

  • Backer board thickness: 3/8"
  • All backer board edges will be covered by the metal

Hemming Information:

  • Hemming is a fabrication option used to keep the outside edges of the sheet from being sharp.
  • The hems will give the edges a finished appearance.
  • The hems will add a degree of rigidity to the backsplash.
  • When you enter the size dimensions of the piece, that will be the "finished" size. We will compensate the extra material for the hem.
  • Hemmed edges are not sharp, they can be touched with the bare hand with very little to no risk of being cut.
  • The hemming is approximately 1/8" thick around the edges, leaving 1/16" space in the back of the backsplash.
  • The hemming option is for all four sides.

HEMMED EDGE:
304 Stainless, 24 Gauge #4 Polish Finish with hemmed edges.

HEMMED EDGE (BACK):
304 Stainless, 24 Gauge #4 Polish Finish with hemmed edges looking at the back.

REGULAR CUT EDGE:
304 Stainless, 24 Gauge #4 Polish Finish with regular cut edging.

SELECT MOUNTING OPTION

Select your preferred mounting option:

  • None - no mounting options included
  • Holes - 1/8" holes located about 3/4" in from each corner
  • Tape - double-sided tape to help hold backsplash in place while construction adhesive sets.
    (construction adhesive is NOT included)

SELECT SHELF OPTION

Select a shelf option:

Selecting the shelf option requires that you select the 'Backer' Edge/Backing Option and Heavy Duty 20G thickness.

  • 6" deep stainless vented shelf
  • Made from the same heavy duty 20 gauge stainless steel
  • Comes with two brackets for easy 'snap-on' installation

ENTER A QUANTITY

Enter the total number of backsplashes of this size/type needed.

You will see the Weight and Price "per piece", as well as the "total" Weight and Price.

NO PATTERN

DIAMOND 3"

DIAMOND 4"

DIAMOND 6"

DIAMOND 12"

DIAMOND 3" x 6"

DIAMOND 4" x 8"

SUBWAY

Basket Weave - Traditional

Basket Weave - Double Weave

Basket Weave - Double Single

HOPSCOTCH

DIAMOND & SQUARE

SQUARE GRID

HERRINGBONE

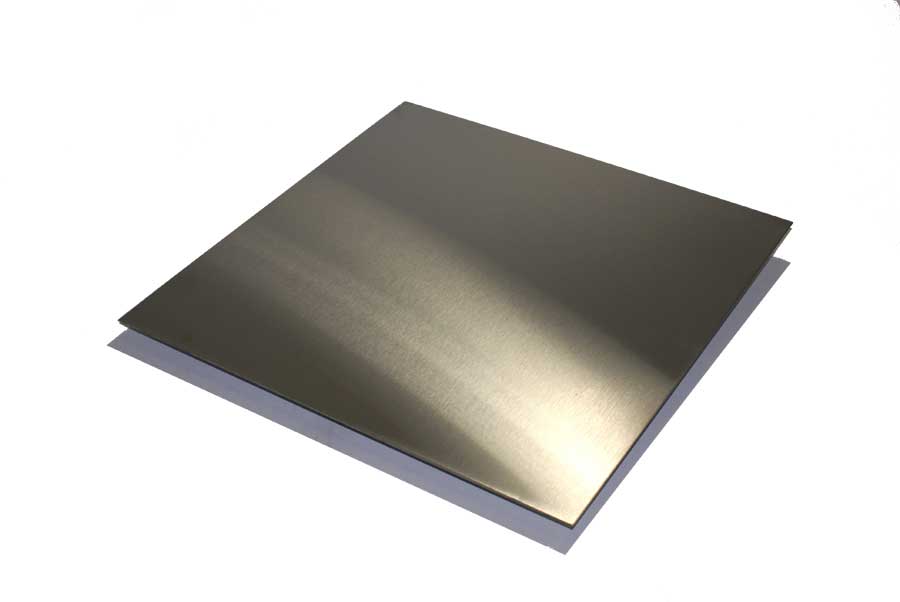

PLAIN SHEET

Our plain sheets consist of Stainless Steel 304, 430 and 316L with these finishes:

  • #4 (brushed) - most commonly found on kitchen appliances
  • #8 (mirror) - has the reflective properties of a mirror
  • Bright Annealed (BA) - similar to #8 (mirror) but not quite as reflective

ETCHED TWO TONE

Two tone finishes are available on many of our patterns. This look is created by taking a regular embossed sheet (either brushed or mirror) and etching alternating sections. This creates a stunning contrast to the base material. The result is a remarkable precision product that most would mistake for individual tiles.

CUSTOM PATTERNS (examples)

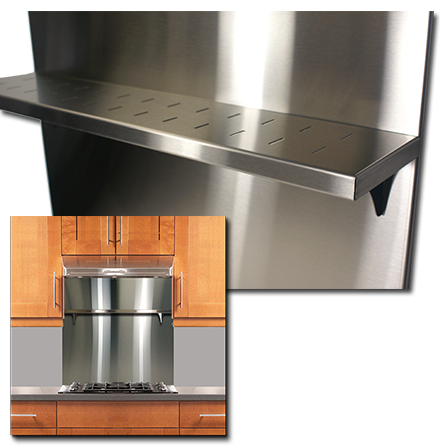

SOLID SHELF WITH BACKSPLASH

BRACKETS (for adjustable shelves)

SINGLE STANDARD (for adjustable shelves)

DOUBLE STANDARD (for adjustable shelves)

CLEAT HANGER (for adjustable shelves)

FLOATING SHELF

The floating shelf uses an integrated mounting frame that easily attaches to the wall. Once attached, simply slide the outer shell over the frame and it locks in place with no tools. This creates amazing strength and capacity.
